In China, due to people's living habits, when decorating the same drainage system, it is still necessary to retain the floor drain settings. However, for the same floor drainage system, the same level of drainage system, the setting of floor drain is also different. So, what is the same floor drain , how to set up the same floor drain ? This is one of the topics that people are more concerned about. If your family has this need, you may wish to come and learn about it together!
What is the same floor drain
The same floor drainage floor drain is the drainage floor drain used in the same floor drainage pipeline. The same floor drainage floor drain, including small cover plate, grid plate, large cover plate, funnel, shell, baffle and water outlet; wherein, the large cover plate is installed on the upper end face of the shell, and the funnel is installed in the central step hole of the large cover plate. In the above, the grid plate is installed on the upper end surface of the funnel, and the small cover plate is installed in the centrally arranged hole of the grid plate. At least one water outlet is arranged on the side of the shell, and at least one baffle is arranged in the inner cavity of the shell and is close to the water outlet.
The advantages of the same floor drainage
First, the design is reasonable, full-featured, novel structure, in the premise of high water seal with deodorant function, and set the self-sealing device in the water cavity, the self-sealing device will automatically open when the water, the water directly into the pipeline through the water cavity, After the water stops, the sealer will automatically close. With anti-spill, anti-insect, deodorant and prevent the flammable gas into the chamber four anti-function. Effectively avoid the use of plastic balls or floats in older products, resulting in difficulty in drainage, odor in the absence of water in the water cavity, and the occurrence of undesirable phenomena such as flying insects and rat crawling.
Second, with adjustable face, in the initial installation or decoration can be adjusted up and down.
Third, when the debris blocking the water chamber causes the water flow rate to slow down, the user can always switch out of the water cavity for cleaning, no professional maintenance personnel to clear, to solve the old floor drain to open the return pipe operation to open the downstairs and destroy the ceiling And other issues.
4. Eliminate return traps and adjust the elevation of the ground. In order to save labor and materials, convenient construction, and solve the problems of old-fashioned floor drain. Five, copper, cast iron, stainless steel, ABS engineering plastics or PVC-U mixed structure and all-plastic structure and other options. Excellent quality, economical and practical, can effectively improve the quality of the project. It is the best choice for the current floor drainage and design units.
How to set the floor drain in the same floor drainage system?

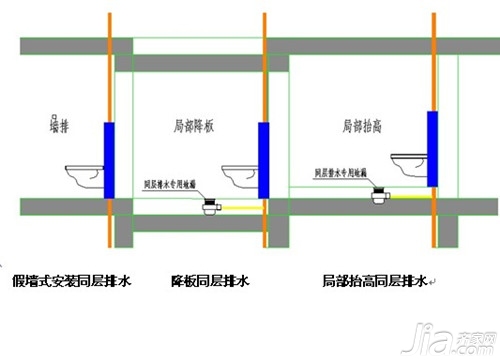

Nowadays, the common settings mainly include laying horizontal cross-tubes, slab-lifting, falling-plates, and buried burial structures.

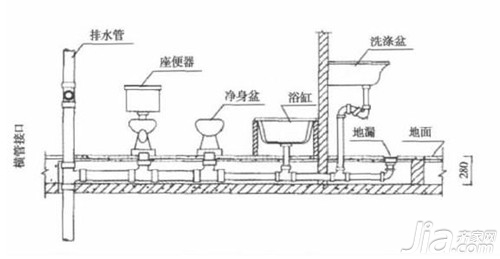

1. The drainage cross pipe is directly laid on the same floor of the ground. This method is suitable for the renovation of the old house, and it adopts a riser room, and the toilet uses a rear outlet type. Drainage cross pipes such as washbasins and showers are installed on the same floor. The floor drain is set in a side-by-side arrangement, either immediately adjacent to the riser or without a floor drain.
Evaluation: This type of floor drain installation method is not convenient due to the inability to provide water seals, poor sanitation, and location near the riser.
2. The riser-type same-layer drainage system uses a building cushion to raise the bathroom floor by 300-400 meters. The drainage cross-pipe is buried in it. The sanitary equipment is radiated in the traditional lower row. In this way, the floor drain also uses the lower drain setting. There is no special requirement for the position.
Evaluation: The drainage floor drain is flexible and has enough water seal depth.

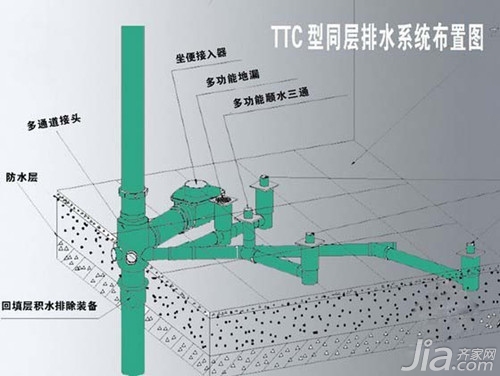

3. The falling floor drainage system is the most common way to lower the bathroom floor by 300-400 meters. The drainage branch pipe is discharged along the ground and is connected with the riser pipe in the same floor. A decorative layer is laid on the pipe, and the sanitary equipment and the like adopt the traditional drainage method.
Evaluation: This method is very common in China, and has a wide range of applications, and is also the most reliable floor drain setting method.
4. The structural layer buried underground water drainage system will integrate the sanitary wares and pipelines into the steel structure brackets according to the design requirements to form a pipeline wall system, with accurate positioning and easy installation. Floor drains are designed to use side drains, placed close to the riser or not.
Evaluation: In general, the application is not very flexible.
Editor's summary: The above is a description of how the ground drain in the same floor drainage floor drain system is set. For the floor drain in the same floor drainage system, there are mainly four types of setting methods. The above four types are also very common. Floor drainage system for floor drain setting. If you don't know how to set up floor drains in the same layer and how to install floor drains in the same floor, you may wish to continue to pay attention to our website. Follow-up will present more exciting content.
